ABU Pro Rocket vänster reservdelar

[cockroach]

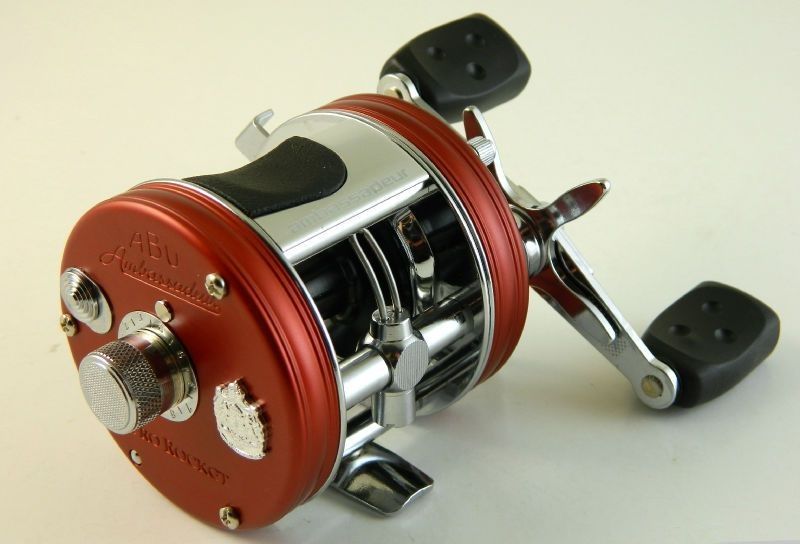

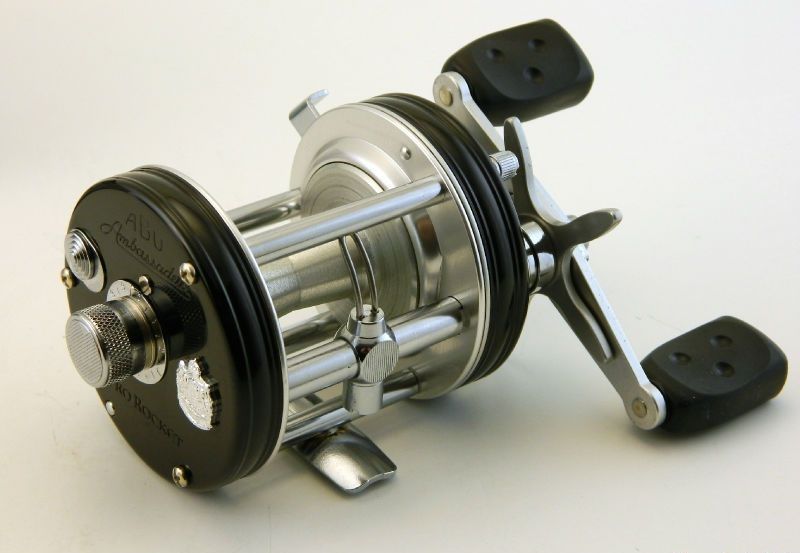

Ursäkta min engelska - Can anyone help me with part numbers for the side plates on these reels, a red 5501CS pro rocket, and a black 6501C SSG rocket?
Hard to find the part numbers!
Thanks.

[dr00l]

For the 5501: http://s7d5.scene7.com/is/content/pu...51_12639-2.pdf

I agree it's hard to find a schematic for the black one. Maybe you should try to contact ABU Svängsta in Sweden?

[cockroach]

Thanks Jon - your link is for the "copper" model, I need the new red model with clicker. I have tried contacting ABU Svängsta, but as I am in England they just forward me to ABU/Pure Fishing UK, which is no good as they do not sell these reels!

[dr00l]

Yeah, you're right... I was certain at least the newer Pro Rockets had the same mechanics and the only thing separating them was the color. Guess I was wrong after all.

Unfortunately I don't have my physical schematic since I sold my purple Pro Rocket a while back, but maybe someone else can help. There's usually loads of helpful people here on FS!

If you're unable to get any help soon, let me know and I'll contact Svängsta for you.

[cockroach]

Superb, thanks!

[Mooki]

Sent a request to ABU and they replied within a few hours with the schematics attached.

Side plates for red 5501 CS Pro Rocket 23 00
Left: 13211801
Right: 13211798

Side plates for black 6501 C 23 00
Left: 1318916
Right: 1318913

There are also some similar plates, if you got to the PF japan website.
The red side plates for the CS have a matte finish, I'm not quite sure but I believe the JDM 5501 C 21 00 has slightly glossier side plates and a slightly brighter red colour.
L: 1239628
R: 1239626

[cockroach]

Mooki, that's fantastic!
Matte finish is OK for me, but I need a clicker/ratchet, so the JDM reel isn't what I want.
Now I've just got to order the parts, not easy from England!

[Mooki]

Drop me a line if you have trouble ordering the parts you need, I might be able to help you out
